Homemade Airgun Design

Note :  Just a theory, could harm

Homemade Airgun :)

1. Blowgun

2. Barrel

3. Wire Clips

4. Nails

5. Old Newspaper

6. Psi Meter

7. Air Tube

8. Shaft (Can be anything)

9. Tire Valve (Bicycle Valve recommended)

10. Customized Cartridge

1. Blowgun

This is used for  releasing air that is inside the Customized Cartridge (10). This is connected with the tube.

2. Barrel

This is optional, this is used if your Blowgun (1) barrel isn't long enough. This is also used to increased the range of the bullet, Nails (4).

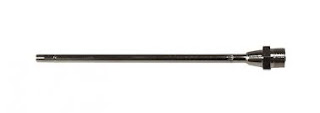

Example of a long barrel Blowgun :

3. Wire Clips

This is used to make sure the Barrel (2)  and the Customized Cartridge (10)  is stay in place.

4. Nails

This is used for the bullet.

5. Old Newspaper

This is used for to make sure the nails are stayed in place. First you have to cut them really small, about 4x4 cm.

6. Psi Meter

This is used to let you know how much psi is inside the Customized Cartridge (10)

7. Air Tube

This is used for connecting the Blowgun (1) with the Customized Cartridge (10). Make sure to bought this with the same end, or if you are creative enough and able to alter some things then, it's fine.

8. Shaft

You could use anything as a shaft. A Shaft (8) is used to push down the Nail (4) and the 4x4 cm Newspaper (5) inside the Barrel (2), like a musket.

Example of a person reloading a musket

9. Tire Valve

This is used to make an easier connection between the Tube (7), Blowgun (1), Psi Meter (6), Customized Cartridge (10), and the pump for pumping the air.

10. Customized Cartridge

This is used to collect the air and later used to shoot the Nails (4). This is customized, that means you make it by yourself, make sure there is 3 Valve (9). The first one is on the back, second is on the front and the third is a bit front. The first Valve (9) is for connecting it with the Blowgun (1), the second Valve (9) is for the Psi Meter (6), the third one is for pumping the air with pump. This is the most important and most difficult part to find/build
